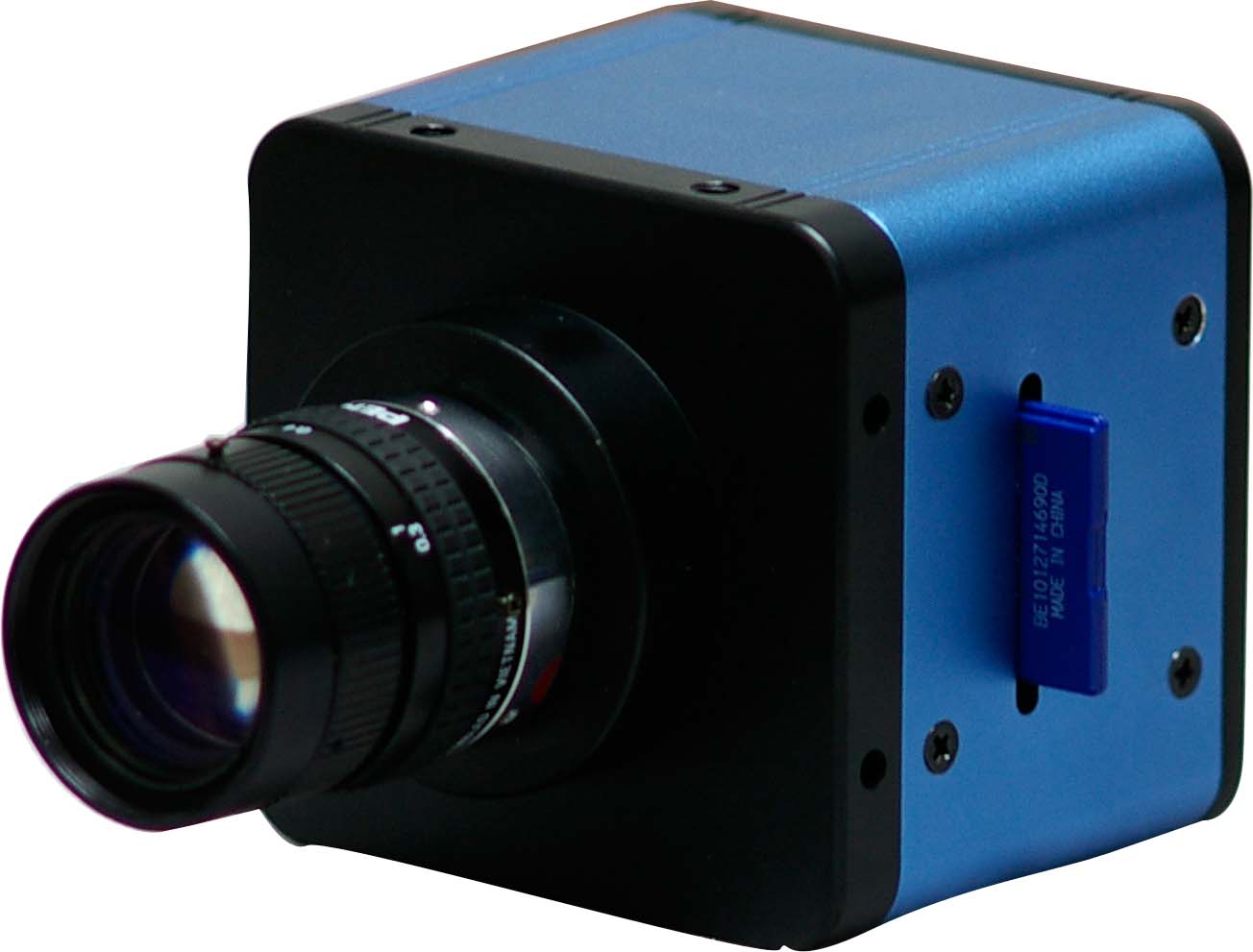

Intelligent HD measuring camera with built-in measurement software,directly plug camera to monitor to work,no computer needed.Save space,time and money.

Measurement way: point, line, surface, circular, distance measuring, the magnification data an be saved in.

Saveing pictures, correcting function ensures measurement precision. The measurement results can be directly saved in the SD card or U disk.

Product features

1 directly connected to the computer displayer or monitor.

2 progressive scan, ensure a clear picture without blinking.

3 unique way to save and access pictures via the build-in SD or U-disk.

4 bright colors can be comparable to the 3CCD camera;

5 all function on menu displayed on monitor(OSD Menu), convenient and easy to use.

6 8:8:8 RGB full color real time display;

7 constant 60 frames per second output, no delay phenomenon

8 build-in measurement function, no more software installation, simple and fast operation.

9: the measuring result is accurate, showing an accuracy of 0.01um

10: measurement accuracy: 0.003mm

Specification

Image size: 1280 x 1024 x 24-bit true color (more resolution available)

Image: shooting speed of 60 frames / second @1280 * 1024

The pixel size: 4.4 x 4.4um

Optical size: 1/2.5

Color adjustment: R, G, B can be adjusted independently

White balance adjustment: single set / manual settings

Exposure control: automatic / manual mode

Contrast control: manual settings

Storage method: SD card or U-Disk

Lens: C - Mount, with fine tuning design

Power supply: 5V

Weight: 500G

Working temperature: 0-70 degrees
