| Brand Name : | DHT |
| Model Number : | CCXC12P02N |
| Certification : | CE/ROHS/FCC/SGS |
| Price : | negotiation |
| Payment Terms : | T/T or western Union |
| Supply Ability : | 300,000pcs per month |
| Delivery Time : | 5~7days |

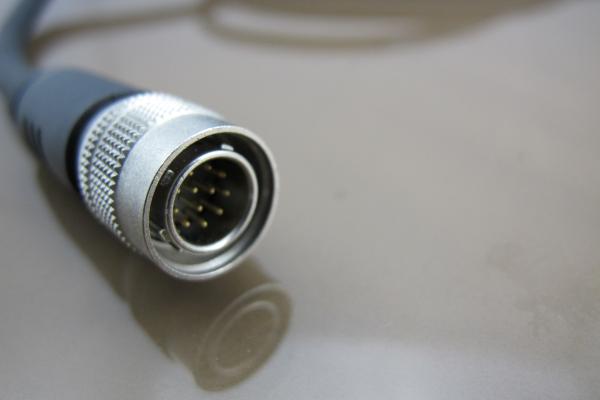

Chain flex Analog cable 5.0 meters HIROSE circular 12Pin male and female connector, coaxial cable for industrial camera
Specifications:
Physical | Cable Color | Black |
Connector | HR10A-10R-12S(73)/HR10A-10R-12P(73) | |
Jacket Material | PVC | |
Shell Material | Polyester Elastomer | |
Shell Color | Black | |
Shell Construction | Pre mold in Poly Ethelene wrapped 360 degrees with copper tape terminated to shield, overmolded in black PVC. | |
Cable construction | 12 coaxial 24AWG*12C+DRAIN+AL/MALOR OD:6.5MM BLACK PVC JACKET UL2464 100%OPEN,SHORT&MISWIRE TEST The CCXC-12P02N Interconnect cable is a segment of interconnect cable designed for use with XC series cameras. This 2 metre (6.5 feet) cable features (12) pins. It connects the XC camera to a DC-700/700CE camera adaptor or JB-77 junction box. | |
Electrical | Voltage Rating | DC 300V 0.08sec |
Current Rating | 1A | |
Insulation Resistance | 20 Mohm MIN | |
Contact Resistance | 3ohm Max | |
Temperature Rating | - 40 to +80 Celsius degree | |
Description:
1, Supports Sony industrial camera XC-ST series interface
2, CHAIN FLEX/HIGH FLEX CABLE ATTIBUTION. Designed for high-performance vision applications
3, Full shielded.
4, All connector Over Molded PVC
5, Entire cable bundle shielded with foil and Coaxial for signal protection.
6, Right angle type available.
7, 0.5meter to 25meters lengths available
8, Straight connection and Right angle available
9, Cables can be customized for unique requirements
10, High flex cable and standard cable available
11. FLEX test term: Locomotive track Flex Radius Flex Speed
12. CCXC 12PIN SERIES CABLE AND I/O CABLE AVAILABLE.
Applications:
Indutrial Camera | Video camera cable for XC-ST70/70CE, XC-ST50/50CE, and XC-ST30/30CE. 12PIN I/O CABLE FOR DALSA,BASLER,COGNEX,CORECO,ADIMEC,EURESYS,JAI,IMPMEX, MATROX,DTA, PULNIX,EVISION,PLEORA,TOSHIBA TELI,NATIONALINSTRUMENT,REDLAKE,UNIQ,IDT,DVC,SILICONIMAGING,OMRON,PELCO, SENTECH,EPIX…… |
Imaging frame grabber | 12PIN I/O Camera cable for CORECO,EPIX,EURESYS,FORESIGHT,MATROX,EVISION,NATIONAL INSTRUMENT…… |
Machine vision | For all 12PIN HR10A-10P-12S(73) /HR10A-10P-12P(73)standard interface |
Equipment Systems | Automatic Optical Inspection system(AOI), Mould monitor, Robot device,Machine Arms,Medical Equipment,Factory Equipment…… |
Competitive Advantage:
1, OEM SERVICE
2, GOOD QUALITY,HIGH FLEX,CHAIN FLEX CABLE
3, GOOD PRICE
4, SHORT TIME DELIVERY TIME
5, NICE SERVICE
6, 1YEAR GUARANTEE.
|
