Black HD Measurement Camera High Resolution Microscope Cam With Power Supply
Product Description

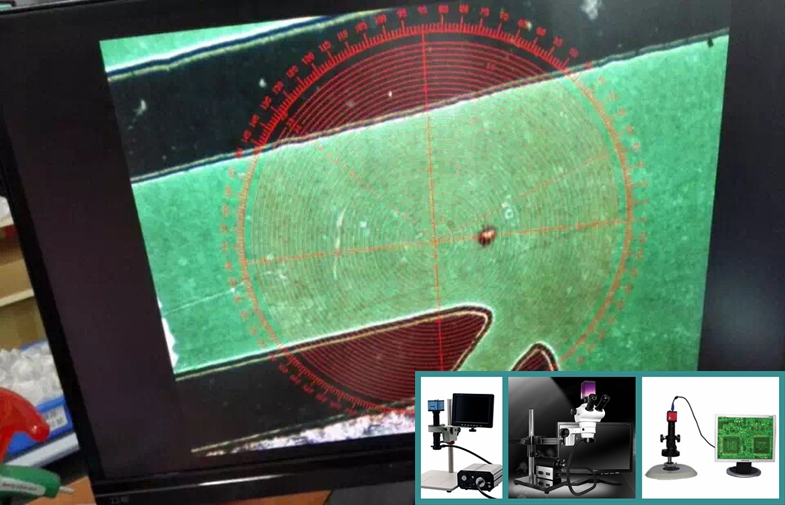

This is a easy use measuring system, combine a HDMI camera with the measuring software, no need for a computer, all measurement work can be finished by the camera embedding measurement software, it simple to set up and easy to operate, any operator soon can get started use it.
1, this camera is mainly used in: measuring microscope, industrial
measuring equipment, smart measuring system
2, function: can measure the distance between the two lines,
circle, arc, polygon, angle, point to point distance, irregular
polygon etc..
3, advantages: easy to learn and easy to operate, measurement data
and pictures can be saved to the emberded SD card or U disk
4, flexible: optional lens and light source, in order to apply the
specific measurement requirements
5, specification:
Model | XGA-200VM-U |
Resolution | 1920*1080, 1440*900 |
Pixel Size | 3.0 μm |
Optical Size | 1/2.7" |
Color Depth | 8:8:8 RGB ( 24bit True Color) |
Frame Rate | 30 fps |
Color Adjust | Manual / Auto |
Luminance Adjust | Manual / Auto |
Photo Storage Mode | U Disk Storage(To Storage Capacity U Disk) |
Overlay Graphic | 8 Crosshairs |
Power Input | DC 12V, 2A |
Dimension | 61mm x 61mm x 84mm |
Operation Moisture | 5%～85% |
Operation Temperature | 0~60°C |
Output Interface | VGA Output |
Output Interface | 8 Lines Can move all screen,They can be changed six colors |
With Below Powersupply available:
|
|
