Screw Lock High Flex Micro USB 3.0 Shield Good Signal 5.0 meters

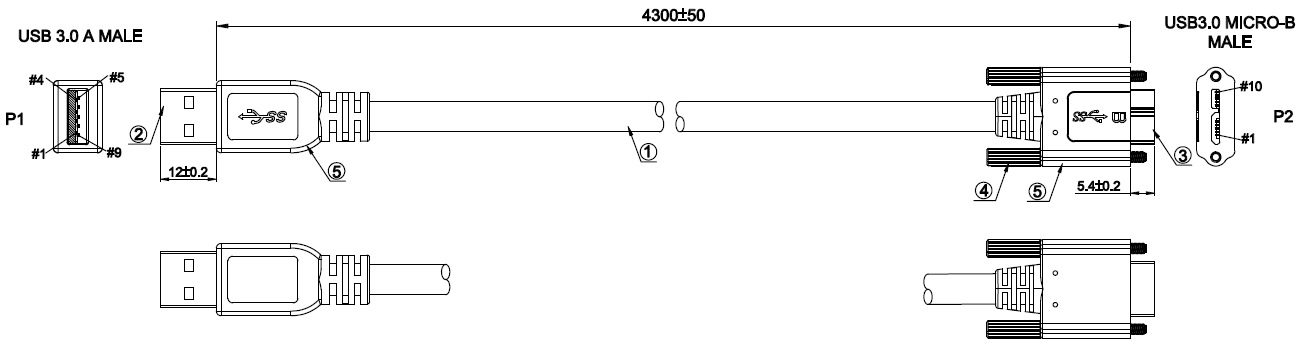

Cable Drawing

(USB3.0 A male to Micro B with Screw Locking):

Specifications and characteristics:

1, The cable color is purple, usb3.0 cable and connector for options.

2, The use of bending resistance cable is specially for moving system,drag chain system automation equipment, AOI, motion detection, motion control and high-end communication equipment etc...

3, The specific screw hole distance please contact us miss wang. Commonly used screws the M2 type.

4, Both ends of high-quality plug, the contact finger is gold plated material, to ensure good contact and 100% copper conductor ensure the signal communication.

5,This sample cable is with one end connector A USB3.0 male, one end of the micro B USB3.0 . Micro B USB3.0 the head with two sides the injection molding screw hole, the specific hole distance please inqure us. Commonly used screws for the M2 type. Micro B USB3.0 side we can provide 90 degrees angluated directions, with a lock screw fixation, the angulated USB connector can solve the equipment space limitation and other issues.

6, The length of the cable can be formulated in accordance with the specific needs of users, the general length of 0.5~3 meters below can be provided, for a longer length, please consult us more can be provided. The longest can do 10 meters(max length 10meters with signal magnifier.)

7, About use of lifetime, we promise 5 million times, test methods, and bending radius, bending frequency per day, the complexity of the motion directions are related, so the bending life is not an absolute value, the bending radius and movement frequency please communicate with us to understand.

8,This product is mainly exported to Germany USA and Italy, mainly used for below application.

Application:

1. Automatic Equipment
2. AOI
3. Drag Chain System
4. Robotic
5. Industrial Camera
6. Machine Vision
7. Chain Flex USB Cable Reliable for MoviongTest and Measurement Equipment

Product features:

• 1, Very suitable for chain system,aoi,robots the enviroment which standard USB cable damage
• 2, The cable sheath and the high - stranded conductor
• 3, There is conneter options
• 4, Full shielded wire and cable,signal very good,Aluminum foil and woven double shielding can be the maximum to prevent electromagnetic interference / RF interference
• 5, There are 0.5, 0.75, 1, 2, 3, 0.3, 4 and 5 m length can be selected;With PCB type signal magnifer,max length is 10meters
• 6, the color is purple,and we have normal cable in black for options

Donghoo Tech Co.,Ltd

Located in China,Shenzhen,an ocean city.

With our own production factory and sales office,6000 square meters,180 employees.

Our factory are specializing in manufacturing and assembling the Sensor connecting cables, Industrial grade data cables,Machine vision cables,factory machine cables, Automotive cable, Medical device cable, RF cable, Chainflex cable, High flex cables,Repeat bending cable, Waterproof cable and Line test measurement cable,offer OEM/ODM service.

Mainly for high end data transmission applicaton.

Including other power supply cables,I/O cables,USB2.0, USB3.0 cable,hirose cables,Camera Link cables and gigabit ethernet ,1394 cables ect.....compatiable with industrial camera and imaging frame grabber.
