| Brand Name : | DHT |
| Model Number : | HDMI-A-0100-S1 |
| Certification : | CE/ROHS/FCC/SGS |
| Price : | negotiation |
| Payment Terms : | T/T or western Union |
| Supply Ability : | 30,000pcs per month |
| Delivery Time : | 5~7days |

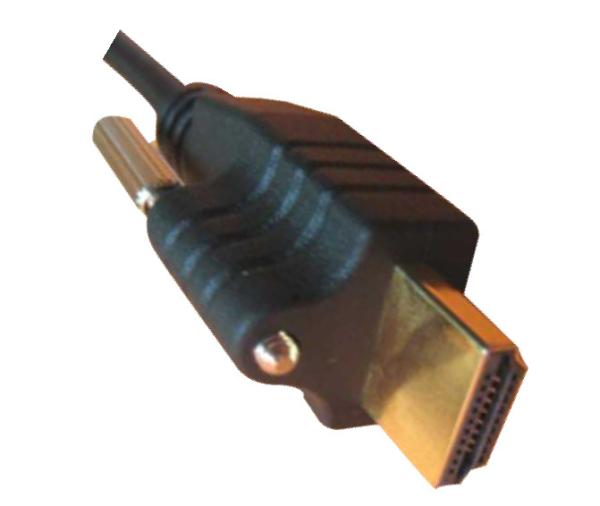

HDMI cable A male with screw,high flex high speed for industrial application.
Specifications:
Physical | Cable Color | Black |
Connector | HDMI A 19PIN MALE SOLDER TYPE | |
Screw Lock | M3*0.5 NICKEL PLATED | |
Jacket Material | PVC | |
Shell Material | Polyester Elastomer | |
Shell Color | Black | |
Shell Construction | Pre mold in Poly Ethelene wrapped 360 degrees with copper tape terminated to shield, overmolded in black PVC. | |
Cable construction | UL20276, OD6.0 BLACK PVC JACKET | |
Electrical | Voltage Rating | DC 300V 0.01Sec |
Insulation Resistance | 20 Mohms MIN | |
Temperature Rating | - 40 to +80 Celsius degree | |
Description:
1, HDMI A MALE WITH SCREW LOCK
2, CHAIN FLEX/HIGH FLEX CABLE ATTIBUTION. Designed for high-performance vision applications
3, Used in very high speed data transmission,industrial camera,frame grabber interfaces, etc.
4, All connector Over Molded PVC
5, Entire cable bundle shielded with foil .
6, Quick release or High Quality Thumbscrews locking type available.
7, 0.5meter to 10meters lengths available
8, Straight connection and Right angle available
9, Cables can be customized for unique requirements
10, High flex cable and standard cable available
11. FLEX test term: Locomotive track Flex Radius Flex Speed
12. FULL HDMI SERIES CABLE AVAILABLE.
Applications:
Indutrial Camera | DALSA,BASLER,COGNEX,CORECO,ADIMEC,EURESYS,JAI,IMPMEX,MATROX,DTA, PULNIX,EVISION,PLEORA,TOSHIBA TELI,NATIONALINSTRUMENT,REDLAKE,UNIQ,IDT,DVC,SILICONIMAGING,OMRON,PELCO, SENTECH,EPIX…… |
Imaging frame grabber | CORECO,EPIX,EURESYS,FORESIGHT,MATROX,EVISION,NATIONAL INSTRUMENT…… |
Machine vision | For all HDMI standard interface |
Equipment Systems | Automatic Optical Inspection system(AOI), Mould monitor, Robot device,Machine Arms,Medical Equipment,Factory Equipment…… |
Competitive Advantage:
1, OEM SERVICE
2, GOOD QUALITY,HIGH FLEX,CHAIN FLEX CABLE
3, GOOD PRICE
4, SHORT TIME DELIVERY TIME
5, NICE SERVICE
6, 1YEAR GUARANTEE.
|
|
